Enrich DEM

Overview

➡️ Insert altimetric points coming from input layers into the input DEM. This script works with five input layers:

  • Digital Elevation Model (DEM) to be enriched

  • Orographic lines

  • Hydrograpic network

  • Roads

  • Railways

And six parameters:

  • Road width (roadWidth): Name of column where the road width is stored (Mandatory)

  • Roads platform height (hRoad) (Optional). Default value = 0m

  • Railroads right-of-way (railWidth): Name of column where the railroad right-of-way is stored (Mandatory)

  • Rail platform height (hRail) (Optional). Default value = 0.5m

  • Input SRID (inputSRID): SRID of the input tables (Optional)

  • Output suffixe (outputSuffixe): Suffixe applied at the end of the resuling table name (Optional). If not specified, “ENRICHED” is applied

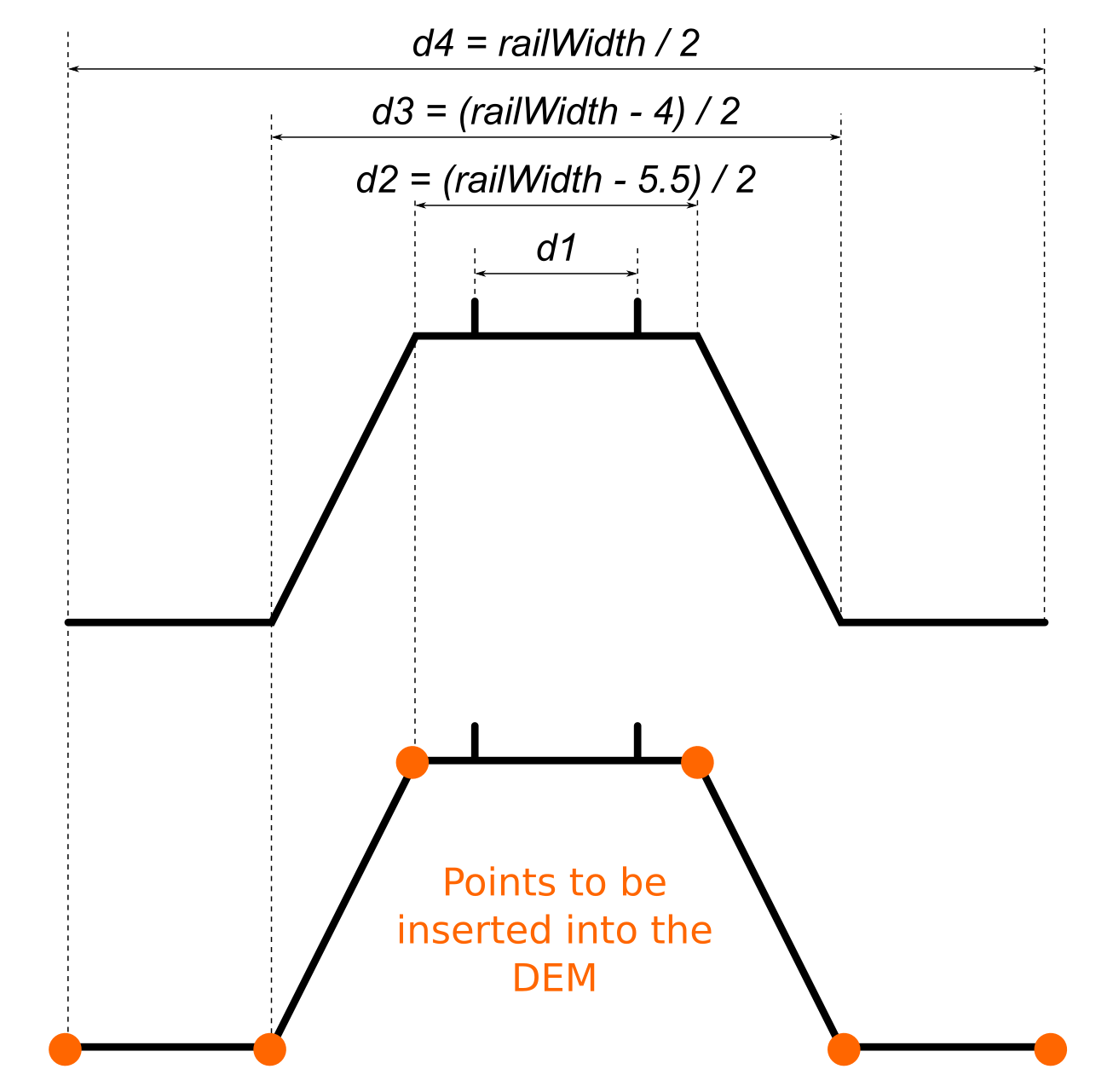

In the schema below, orange points will be inserted into the DEM. d2, d3 and d4 are deduced from the information provided in the parameter railWidth, using the following formula:

  • d2 = (railWidth - 5.5)/2

  • d3 = (railWidth - 4)/2

  • d4 = (railWidth)/2

Railways platform

Arguments

Mandatory inputs

inputDEM — Input DEM table

Name of the input DEM table to be enriched

Type: String

inputHydro — Input hydrographic table

Name of the input hydrographic network table

Type: String

inputOro — Input orography table

Name of the input orography table

Type: String

inputRail — Input railways table

Name of the input railways table

Type: String

inputRoad — Input roads table

Name of the input roads table

Type: String

railWidth — Railways width

Name of column where the railways width is stored

Type: String

roadWidth — Road width

Name of column where the road width is stored

Type: String

Optional inputs

hRail — Railways platform height

Railways platform height (in meters) (Optional)

Type: double

Default: 0.5

hRoad — Roads platform height

Roads platform height (in meters) (Optional)

Type: Double

Default: 0

inputSRID — Input SRID

🌍 SRID of the input tables. 🛠 If not specified, the SRID from DEM layer is applied. If DEM has no SRID, 0 is applied

Type: Integer

outputSuffixe — Output suffix

Suffix applied at the end of the resulting table name

Type: String

Default: ENRICHED

Output

result — Result output string

This type of result does not allow the blocks to be linked together.

Type: String
